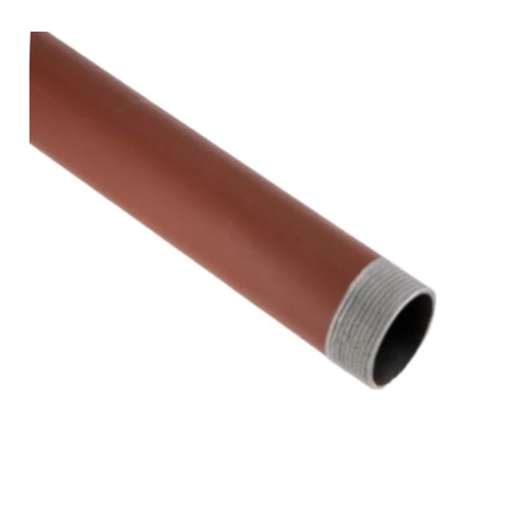

    15nb BSEN10255/10217-2 S235GT/P235GH Red Hvy Tube S/S Half Random

    15mm (1/2") Red Oxide Heavy Screwed & Socketed Mild Steel Tube. Dual Certified conforming to BS EN 10255 & 10217-2 (Half Length 3.25m – Priced Per Metre) Quantity will be rounded up online but you will only be invoiced for exact metres received. Half-length of 3.25 metre’s will be shown as quantity of 4 online and all orders/invoices will be adjusted to 3.25m
    SBS SKU: RHSHR015
    Availability: In stock

    We stock a full range of red-oxide primer painted, mild steel pipe, medium and heavy wall thickness. All our steel pipe conforms to the European Pressure Equipment Directive (PED) and is dual certified to BS EN 10217-2 and BS EN 10255 industry standards. Our steel pipe is traceable back to the manufacturer and can be supplied with test certification if required. Available in both 6.5m full random and 3.25m half random lengths, plain ended, screwed & socketed or grooved in sizes between 1/2" (15mm) and 4" (100mm) nominal bore. With a red-oxide primer paint finish for enhanced corrosion-resistance, this type of pipe can be used in a multitude of high-pressure applications including, Petro-chemical, oil, gas and fire sprinkler systems.

    The dimensions, weights and tolerances as per EN 10255 (BS1387) are set out in the table below:



    Nominal boreSpecified outside diameterOutside diameterHeavy seriesMedium series
    MinMaxWall thicknessMass (Plain)Mass (S&S)Wall thicknessMass (Plain)Mass (S&S)
    (inches)(mm)(mm)(mm)(mm)(Kg/m)(Kg/m)(mm)(Kg/m)(Kg/m)
    ½” 21.3 21.0 21.8 3.2 1.44 1.45 2.6 1.21 1.22
    ¾” 26.9 26.5 27.3 3.2 1.87 1.88 2.6 1.56 1.57
    1” 33.7 33.3 34.2 4.0 2.93 2.95 3.2 2.41 2.43
    1 ¼” 42.4 42.0 42.9 4.0 3.79 3.82 3.2 3.10 3.13
    1 ½” 48.3 47.9 48.8 4.0 4.37 4.41 3.2 3.56 3.60
    2” 60.3 59.7 60.8 4.5 6.19 6.26 3.6 5.03 5.10
    2 ½” 76.1 75.3 76.6 4.5 7.93 8.05 3.6 6.42 6.54
    3” 88.9 88.0 89.5 5.0 10.3 10.5 4.0 8.36 8.53
    4” 114.3 113.1 115.0 5.4 14.5 14.8 4.5 12.2 12.5

    The nominal bore is a discretionary dimension only as the wall thickness of the tube can vary depending on the gauge of tube used. Such variances will affect the nominal bore measurement. The tolerance on wall thickness is +/- 10%. The tolerance on mass is +/- 7.5%.

    Products specifications
    Connection Type Threaded/Screwed
    Material/Finish Steel
    Length/Coil (metres) 3.25m
    Size (inch) 1/2
    Size (mm) 15mm
    Fitting Type Tube/Pipe
    Material/Finish Painted
